Buy Liquidity

Purchase inbound Lightning capacity through the Magma API. Estimate cost, place a buy order, pay the HODL invoice, and confirm the channel.

This guide is the reference for the buyer side of the Magma API. By the end you'll be able to:

Quote a channel's cost before charging your user
Place a buy order with liquidity.buy
Hand the buyer a Lightning invoice or hosted checkout
Track the order through to a confirmed channel

For a wider walkthrough with production checklist, see Integrate. For the LSP-compatible REST path, see the LSP API.

Overview

Buying liquidity is a two-step flow:

Call `liquidity.buy`

Provide the buyer's connection_uri, the amount in usd_cents, and any optional channel options.

Pay the returned invoice

Either pay the Lightning invoice directly, or send the buyer to redirect_url (a BTCPay-hosted checkout for the same invoice).

Once paid, the seller opens the channel and the order walks through the order lifecycle until it reaches VALID_CHANNEL_OPENING.

liquidity.buy is public - you can call it without an API key. The response includes a session_key that lets the same anonymous buyer come back to track their order. See Authentication.

1. Estimate the price

Use liquidity_per_usd to quote channel size for a given USD amount. Pure query, no auth required, safe to retry.

query LiquidityPerUsd {
  market {
    liquidity {
      liquidity_per_usd {
        sats
        usd
      }
    }
  }
}

curl -X POST https://magma.amboss.tech/graphql \
  -H "Content-Type: application/json" \
  -d '{"query":"query { market { liquidity { liquidity_per_usd { sats usd } } } }"}'

import { GraphQLClient, gql } from "graphql-request";

const magma = new GraphQLClient("https://magma.amboss.tech/graphql");

const { market } = await magma.request(gql`
  query {
    market { liquidity { liquidity_per_usd { sats usd } } }
  }
`);

console.log("sats per $1:", market.liquidity.liquidity_per_usd.sats);

{
  "data": {
    "market": {
      "liquidity": {
        "liquidity_per_usd": { "sats": "543260", "usd": "501.09" }
      }
    }
  }
}

Reading the response

Field	Meaning
`sats`	Satoshis of inbound capacity per USD spent.
`usd`	Expected dollar-receiving capacity per USD spent. At a ratio of ~500, $1 of fees can carry ~$500 of routed payments.

Example quotes (at the rate above)

$5 → ~2.7M sats
$50 → ~27M sats
$100 → ~54M sats

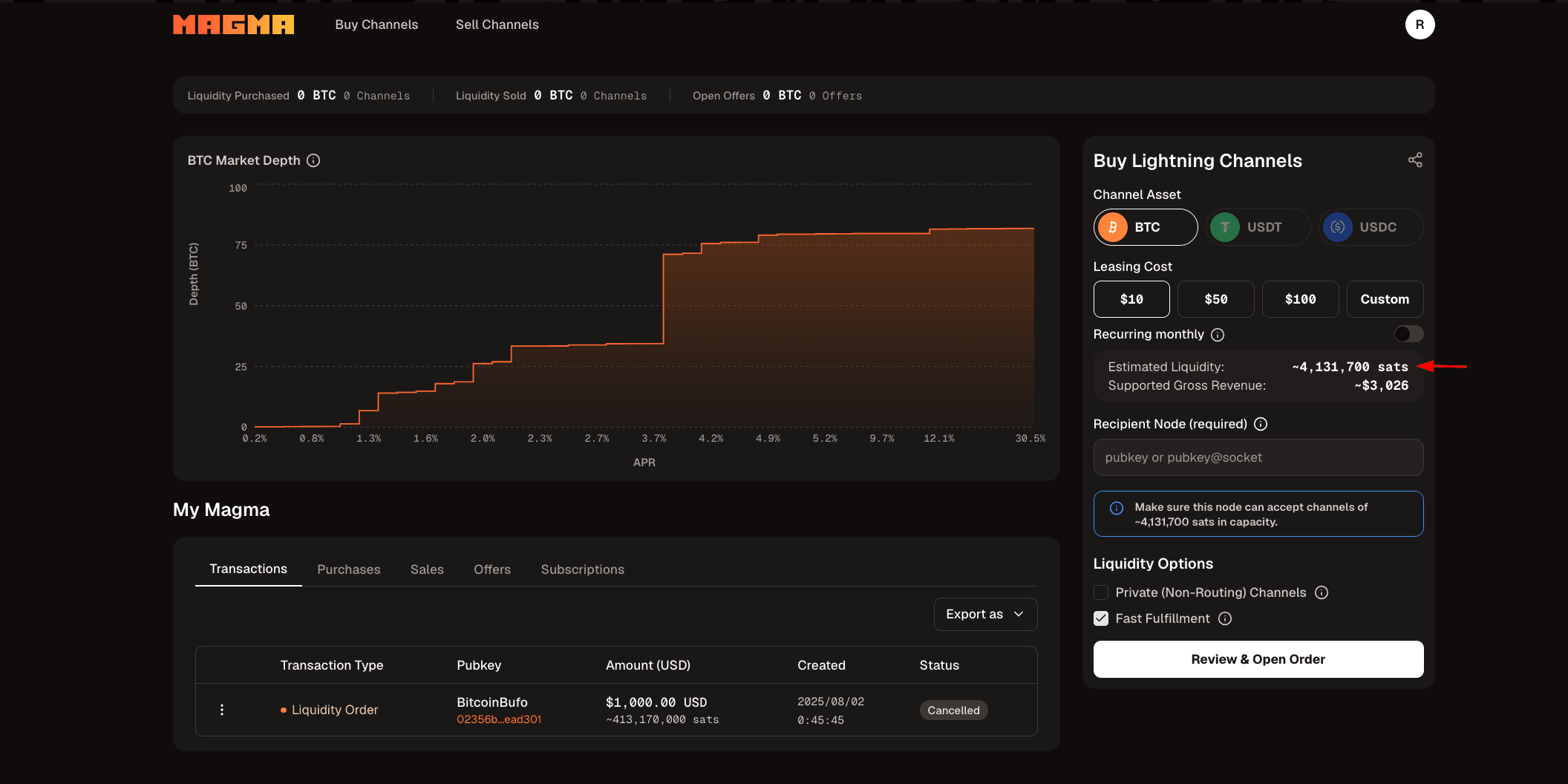

You can also see live estimates on the Magma homepage.

The estimate reflects current marketplace depth and can shift between the query and your liquidity.buy call. Don't treat it as a binding quote.

2. Authenticate (optional)

For anonymous one-off purchases, skip this. Otherwise mint an API key at account.amboss.tech/settings/api-keys and send it as a Bearer token.

Authorization: Bearer YOUR_API_KEY

See Authentication for the full credential matrix (API keys vs session keys).

3. Place the buy order

The liquidity.buy mutation takes a LiquidityOrderInput and returns:

A Lightning invoice (payment.lightning_invoice) the buyer can pay directly
A hosted checkout URL (payment.redirect_url) wrapping the same invoice
An order.transaction_id you'll use to track the order
An account.session_key for anonymous buyers - save it, it's not retrievable later

mutation BuyLiquidity($input: LiquidityOrderInput!) {
  liquidity {
    buy(input: $input) {
      account { id session_key }
      order { transaction_id usd_cents }
      payment {
        lightning_invoice
        redirect_url
        amount { sats }
      }
    }
  }
}

{
  "input": {
    "connection_uri": "024ae5265b5f4d1c789010f479d6b5a2e2c26948d301b00e170c1ed6f6c81c717a@bb4iz3w54euuhq2plh75jtrc4ogvafgz5vyjapwj2z24sl7f5b2nbgid.onion:9735",
    "usd_cents": "5000",
    "options": {
      "private": false,
      "rails_cluster_only": true
    }
  }
}

Open this mutation in the Apollo Explorer

curl -X POST https://magma.amboss.tech/graphql \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $AMBOSS_API_KEY" \
  -d @- <<'JSON'
{
  "query": "mutation($input: LiquidityOrderInput!) { liquidity { buy(input: $input) { account { id session_key } order { transaction_id usd_cents } payment { lightning_invoice redirect_url amount { sats } } } } }",
  "variables": {
    "input": {
      "connection_uri": "024ae5265b5f4d1c789010f479d6b5a2e2c26948d301b00e170c1ed6f6c81c717a@bb4iz3w54euuhq2plh75jtrc4ogvafgz5vyjapwj2z24sl7f5b2nbgid.onion:9735",
      "usd_cents": "5000",
      "options": { "rails_cluster_only": true }
    }
  }
}
JSON

import { GraphQLClient, gql } from "graphql-request";

const TOKEN = process.env.AMBOSS_API_KEY;

const client = new GraphQLClient("https://magma.amboss.tech/graphql", {
  headers: TOKEN ? { Authorization: `Bearer ${TOKEN}` } : {},
});

const BUY = gql`
  mutation BuyLiquidity($input: LiquidityOrderInput!) {
    liquidity {
      buy(input: $input) {
        account { id session_key }
        order { transaction_id usd_cents }
        payment { lightning_invoice redirect_url amount { sats } }
      }
    }
  }
`;

async function buyLiquidity({ connectionUri, usd, options = {} }) {
  const { liquidity } = await client.request(BUY, {
    input: {
      connection_uri: connectionUri,
      usd_cents: String(Math.round(usd * 100)),
      options,
    },
  });
  return liquidity.buy;
}

const order = await buyLiquidity({
  connectionUri: "[email protected]:9735",
  usd: 50,
  options: { rails_cluster_only: true },
});

console.log("BTCPay checkout URL:", order.payment.redirect_url);
console.log("Lightning invoice  :", order.payment.lightning_invoice);
console.log("Session key        :", order.account.session_key);

`LiquidityOrderInput`

Field	Required	Type	Description
`connection_uri`	✅	`String`	`pubkey@host:port` - the destination node. Tor sockets (`*.onion:9735`) work. Get it from `lncli getinfo` (LND) or `lightning-cli getinfo` (CLN).
`usd_cents`	✅	`String`	Integer string in USD cents. Minimum `500` ($5).
`redirect_url`	❌	`String`	URL the buyer is sent to after BTCPay checkout. Defaults to a Magma status page.
`options.private`	❌	`Boolean`	Open an unannounced (private) channel.
`options.rails_cluster_only`	❌	`Boolean`	Restrict matching to the Amboss Rails cluster - higher-reliability sellers.
`options.asset_id`	❌	`String`	Non-BTC asset id. List with the `assets.list` query. Omit for Bitcoin.

Response shape

Path	Description
`payment.lightning_invoice`	BOLT11 invoice. Pay this and the order moves forward.
`payment.redirect_url`	BTCPay-hosted checkout URL wrapping the same invoice.
`payment.amount.sats`	The invoice amount in sats - useful for showing the buyer total fees.
`order.transaction_id`	Use this as `order_id` in all follow-up queries.
`order.usd_cents`	Echo of the amount you requested.
`account.id`	Account ID (auto-created for anonymous buyers).
`account.session_key`	Bearer token for anonymous tracking - save it.

Example response

{
  "data": {
    "liquidity": {
      "buy": {
        "account": {
          "id": "54b9e82d-39d0-42b9-9229-f67786cdf145",
          "session_key": "b65b867c345468a0a2e07b3b86aa3078"
        },
        "order": {
          "transaction_id": "ec562479-a4b8-44f4-95b4-150b310832de",
          "usd_cents": "5000"
        },
        "payment": {
          "lightning_invoice": "lnbc125u1p53epcypp5...",
          "redirect_url": "https://btcpay.amboss.tech/i/LJfTHukUZLXCt1u7VpZDmB",
          "amount": { "sats": "125000" }
        }
      }
    }
  }
}

Minimum amount is $5 (500 cents). liquidity.buy is not idempotent - every call creates a new order. If a request times out, reconcile via user.transactions.transaction_list before retrying.

4. Pay the invoice

Three common patterns:

Pattern	What you do
End-user wallet	Render `payment.lightning_invoice` as a QR code or `lightning:` URI. The buyer scans it.
Hosted checkout	Redirect the buyer to `payment.redirect_url`. Same invoice, hosted UI.
Programmatic	Pay `payment.lightning_invoice` directly from your own node (`lncli payinvoice`, equivalent RPC).

The instant the HTLC lands, payment_status flips to SUCCESSFUL_PAYMENT and status advances to WAITING_FOR_CHANNEL_OPEN.

5. Track the order

Authenticate with your API key or session_key, then poll user.market.orders.get_order. See Tracking Orders for the recommended cadence and a reference polling loop.

query GetOrder($orderId: String!) {
  user {
    market {
      orders {
        get_order(order_id: $orderId) {
          status
          payment_status
          channel_id
          confirmations { confirmations }
        }
      }
    }
  }
}

Stop polling at any terminal status. On VALID_CHANNEL_OPENING the channel is live.
